Cypress Semiconductor WICED CYW43907评估套件

Cypress Semiconductor WICED CYW43907评估套件用于评估和开发采用CYW43907器件的单芯片Wi-Fi应用。 CYW43907是一款单芯片802.11n双频带（2.4GHz和5GHz）Wi-Fi SoC，设有320MHz ARM Cortex-R4 MCU。 该套件用于评估器件功能，以快速开发各类应用并缩短上市时间。 该套件与Arduino兼容，可以使用现成的扩展板进行扩展。

The CYW43907 Wireless MCU and the kit are supported in WICED Studio 5.0 (or later). Cypress' WICED Studio is the only SDK for the Internet of Things that integrates Wi-Fi and Bluetooth into a single IDE. The SDK provides WICED APIs and application framework designed to abstract complexity.

FEATURES

• CYW43907 based module

• On-board PCB antenna with an option to connect external antenna

• Arduino compatible headers for hardware expansion

• Custom header to bring out additional GPIOs (WICED header)

• User switches and LEDs

• On-board programmer and debugger using USB interface and USB-UART bridge

• RJ45 connector for Ethernet

• 5V to 12V input using USB connector or power jack

• The following hardware is not included but is needed to perform demonstrations documented in the datasheet:RJ-45 Ethernet cable

• SD-Card

• External power supply

• Dual external antenna

• Potentiometer

• Jumper Wires

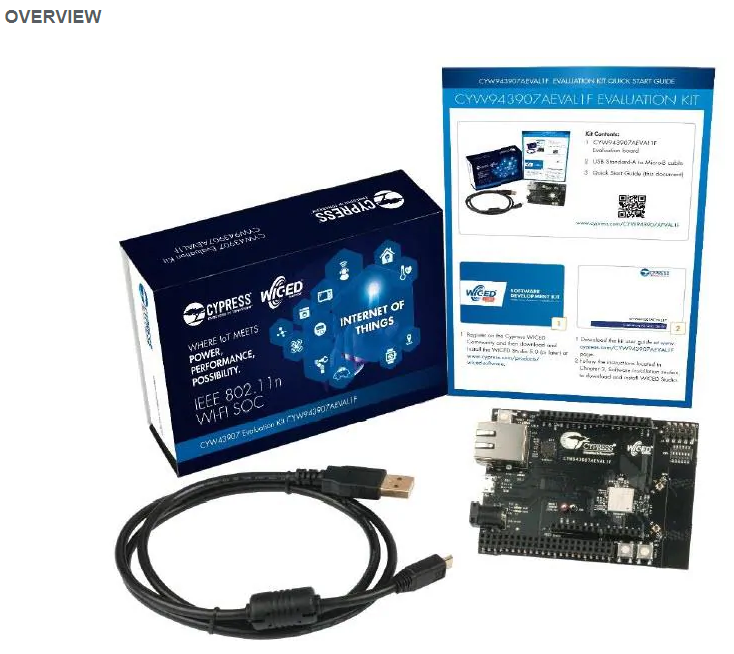

KIT CONTENTS

• CYW943907AEVAL1F Evaluation board

• USB Standard-A to Micro-B cable

• Quick Start Guide
